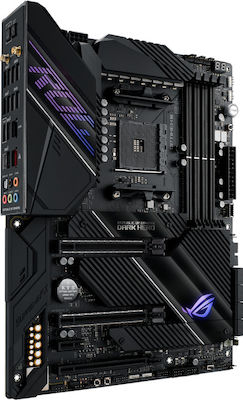

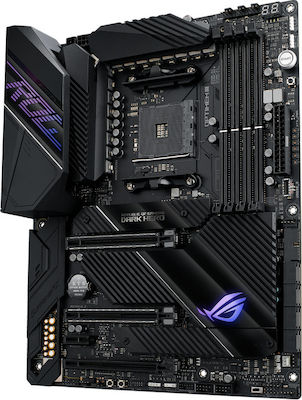

ROG Crosshair VIII Dark Hero boasts an optimized power design layout and all the cooling headers you need to handle the prodigious power of the latest AMD Ryzen processors.
Spezifikationen
Beschreibung
Produktdetails
- Größe
- ATX
- Tastaturen
- Schreibtisch
Prozessor
- Unterstützte Prozessoren
- AMD
- Modelle
- Ryzen
- Unterstützte CPU-Generation
- Zen 2, Zen 3, Zen+
- Steckdose
- AM4
Chipsatz
- Modell
- AMD X570
Speicher
- Speichertyp
- DDR4
- Menge
- 4 DIMM-Steckplätze
- Speichertaktraten
- 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3400OC, 3600OC, 3866OC, 4000OC, 4266OC, 4333OC, 4400OC, 4600OC, 4800OC, 4866OC, 5000OC, 5100OC
- Speicherkanäle
- Zweikanal
Interne Anschlüsse
- PCI Express x16 4.0
- 2 Steckplatz
- SATA III 6Gb/s
- 8 Hafen
- M.2 Typ
- 1 PCIe 3.0-Anschluss, 1 PCIe 4.0-Anschluss
- M.2 Steckplätze
- 0
Externe Anschlüsse
- Hintere USB-A-Ausgänge
- 11 USB 3.2-Anschlüsse
- Hintere USB-C-Anschlüsse
- 1 USB 3.2-Anschluss
- Ethernet (LAN)
- 2
Spezifikationen
- RGB-Beleuchtung
- Ja
- WiFi/Bluetooth
- Ja
- Zusätzlich
- Bios Rückblende, Taste CMOS löschen, RGB-Kopfzeile
Karten
- Soundkartenkanäle
- 7.1
- Zusätzliche Audioanschlüsse
- Optisch S/PDIF
Top-Spezifikationen
- Erinnerung
- -
Wichtige Informationen
Spezifikationen werden von offiziellen Hersteller-Websites gesammelt. Bitte überprüfen Sie die Spezifikationen, bevor Sie Ihren endgültigen Kauf tätigen. Wenn Sie ein Problem bemerken, können Sie melden Sie es hier
Beschreibung
The Asus ROG Crosshair VIII Dark Hero X570 motherboard is aimed at users looking for a high-quality and reliable motherboard to build a powerful gaming or professional system. It is suitable for overclocking and supports AMD Ryzen 5000 series processors and DDR4 memory with high data transfer rate. In addition, it provides several connectivity features such as USB 3.2 Gen 2, Wi-Fi 6 and Bluetooth 5.1.
The Asus ROG Crosshair VIII Dark Hero X570 is aimed at users who demand the best performance and reliability from their system and are ready to invest in a quality motherboard.
Performance
ROG Crosshair VIII Dark Hero boasts an optimized power design layout and all the cooling headers you need to handle the prodigious power of the latest AMD Ryzen processors.
Teamed Power Architecture
Modern CPU architectures up the ante for motherboard power design by transitioning from deep power-saving modes to full load almost instantaneously. Our latest VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.
High Quality Components
- Dual 8-pin ProCool II power connector, Two ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.
- 14+2 power stage, The VRM has 14+2 power stages, each rated to handle 90 amps.
- MicroFine alloy chokes, Each Power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
- 10K Japanese-made black metallic capacitors, Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
ASUS Optimem III
Infused with proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, Optimem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies. Stack the Dark Hero with your favorite modules and maximize Zen 3 processors throughput for applications that demand massive bandwidth, or balance infinity fabric and memory performance for a diverse range of workloads.
Cooling
Maintaining system stability is paramount under high load, so Crosshair VIII Dark Hero employs passive chipset cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Featuring premium components and multiple fan headers, Crosshair VIII Dark Hero is fully armed to provide the best foundation for gaming systems.
- VRM heatsink, The two VRM heatsinks are placed above the MOSFETs and chokes, and are connected by a heat-pipe to further increase surface area for heat dissipation.
- M.2 heatsink, Two dedicated heatsinks keep the dual M.2 SSDs at the optimum operating temperature for consistent performance and reliability.
- High-conductivity thermal pad, A high-quality thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
- Passive chipset heatsink, A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.
ROG Crosshair VIII Dark Hero features the most comprehensive cooling options ever.
-
Multiple temperature sources
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4 or UEFI.
-
4-pin PWM/DC fan
Every onboard header supports auto-detection of PWM or DC fans.
-
AIO PUMP
A dedicated PWM/DC header for self-contained water-cooling setups.
Water Cooling
Dual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility, allowing you to track coolant temperatures and the flow rate of the entire loop.
-
Water pump+
A dedicated header can supply over 3 amps to high-performance PWM or DC water pumps.
-
Water in/out
A dedicated header enables monitoring of temperatures at the input/output points of any component.
-
Water flow
A dedicated header enables constant monitoring of flow rate throughout the entire loop.
Optimization
ROG Crosshair VIII Dark Hero is packed with intuitive and flexible tools to allow customization across all system parameters to deliver the performance you want.
AI Suite 3
The dashboard-style control panel of AI Suite 3 lets you fine-tune almost every aspect of your ROG Crosshair VIII Dark Hero system with ease. Get the best balance between performance, cooling, stability, and efficiency via one simple and intuitive interface.
- TurboV Processing Unit, provides an array of system-tuning features, including the ability to fine-tune voltages, monitor system stats and adjust overclocking parameters
- Energy Processing Unit, automatically adjusts the system's power consumption
- Fan Xpert 4, gives control of the cooling systems
- Turbo App, adjusts the system, from processor clock to cooling mode, depending on the application in use
Connectivity
ROG Crosshair VIII Dark Hero offers advanced connectivity, including WiFi 6 (AX200) and dual Ethernet with Intel 1Gb and Realtek 2.5Gb Ethernet port to eliminate bottlenecks so you can enjoy exceptionally smooth online and LAN play. Additionally, the M.2 supports AMD StoreMI technology to maximize the speed of your SSD for faster load times, and SupremeFX on-board audio provides superb sound, while saving a PCIe slot.
- WiFi 6 (AX200), Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense WiFi environments, providing exceptional online gaming experiences.
- Realtek 2.5Gb Ethernet, 2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement.
- Intel 1Gbps Ethernet, ensures data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.
Storage
Dual PCIe 4.0 M.2 Slot support up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the AMD Ryzen 5000 and 3000 Series desktop processors.
AMD StoreMI
X570 series motherboards maximize the capabilities of your PC with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and improve the overall user experience.
This easy-to-use utility combines the speed of SSDs with the high capacity of hard drives into one drive, improves device read/write speeds to match that of SSDs, boosts data performance for incredible value, and transforms the everyday PC into a performance-based system.
The benefits of AMD StoreMI
- Making the PC experience fast, smooth and easy
- Optimizing computer responsiveness from system boot to application launch
- Offering SSD performance with HDD capacity at an affordable cost
- Quickly accessing key files by automatically learning users' computing behaviors
SupremeFX
ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide best-ever recording quality. There's also a low-dropout regulator for cleaner power delivery to the SupremeFX S1220 codec, an ESS ES9023P digital-to-analog converter for superior front-panel output, and a Texas Instruments RC4580 op amp for high gain with low distortion, all to produce unmatched audio quality.
Personalize
In addition to extraordinary performance, ROG Crosshair VIII Dark Hero provides extensive styling and customization options to let you build a system that truly stands apart.
Aura Sync
Gear up with ROG components, from graphics and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands.
The addressable Gen 2 RGB headers now feature software that can automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
RAMCache lll
RAMCache lll software utility turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, RAMCache lll utilizes uniquely intelligent technology to effectively cache any storage device, so favorite games and apps launch at breakneck speeds.
Sonic Studio III
Sonic Studio supports HRTF-based (head-related transfer function) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
Armoury Crate
Armoury Crate is a software utility designed to provide centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate puts command of all your Aura gear at your fingertips with the new Aura Creator suite ready. The software also provides control of settings for a growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even offers dedicated product registration and ROG news feeds to help you stay in touch with the ROG gaming community.
