Experience the next level of 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by the groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology, and AMD HYPR-RX for ultra-smooth, ultra-fast gameplay that makes every game count.
- Produktnummer
- 11350-03-20G
Hauptspezifikationen
- Prozessorhersteller
- AMD
- Chipset-Modell
- Radeon RX 9060 XT
- Schnittstelle
- PCI Express x16 5.0
- Maximale Auflösung
- 7680x4320 Pixel
- Parallelverarbeitungstechnologie
- Nicht unterstützt
- Tastaturen
- Hohe Leistung
- Cuda-Kerne
- -
- Verwenden
- Gaming
- Farbe
- Black
Spezielle Merkmale
- RGB-Beleuchtung
- Nein
- Übertaktung (OC)
- Ja
- Luftgekühlt
- Ja
- Niedrigprofil
- Nein
- Passive Kühlung
- Nein
- Wasserkühlung
- Nein
- ExeGPU Grafikkarte
- Nein
- LHR
- Nein
Speicher
- Speicherkapazität
- 16 GB
- Speichertyp
- GDDR6
- Speichergeschwindigkeit
- 20 Gbit/s
- Speicherbus
- 128 bit
Verbindungsmöglichkeiten
- HDMI
- 2
- DisplayPort
- 1
- Dual Link DVI
- Nein
Systemanforderungen
- Mindestleistung des Netzteils
- 450 W
- Stromanschlüsse
- 8-polig
Abmessungen
- Länge
- 240 mm
Top-Spezifikationen
- Erinnerung
- 16GB, GDDR6
- Konnektivität
- HDMI, DisplayPort
Wichtige Informationen
Spezifikationen werden von offiziellen Hersteller-Websites gesammelt. Bitte überprüfen Sie die Spezifikationen, bevor Sie Ihren endgültigen Kauf tätigen. Wenn Sie ein Problem bemerken, können Sie melden Sie es hier
Beschreibung
Die Sapphire Radeon RX 9060 XT ist eine leistungsstarke Grafikkarte, die für Gamer und Content-Ersteller entwickelt wurde, die hohe Leistung und Bildqualität benötigen. Mit 16 GB GDDR6 Speicher bietet sie die Fähigkeit, die anspruchsvollsten Anwendungen und Spiele bei hohen Einstellungen auszuführen. Die maximale unterstützte Auflösung beträgt 7680x4320, was eine beeindruckende Bildqualität ermöglicht, die die Benutzer fesselt.
Die Karte verfügt über ein PCI Express x16 5.0 Interface, das eine schnelle und effiziente Verbindung zur Hauptplatine gewährleistet. Die Speichergeschwindigkeit beträgt 20 Gbps, was eine hohe Datenübertragungsrate ermöglicht, während der 128-Bit Speicherbus zu schnellem Zugriff und effizienter Ausführung anspruchsvoller Prozesse beiträgt.
Darüber hinaus bietet sie 2 HDMI und 1 DisplayPort für flexible Anschlussmöglichkeiten, ideal für mehrere Monitore oder zur Wiedergabe von Inhalten in hoher Auflösung. Für den ordnungsgemäßen Betrieb benötigt sie eine Mindestleistung des Netzteils von 450W und verfügt über einen 8-pin Stromanschluss.
Die Sapphire Radeon RX 9060 XT unterstützt außerdem den OverClocked Modus, der die Möglichkeit bietet, die Leistung zusätzlich zu steigern, ideal für diejenigen, die das volle Potenzial der Karte ausschöpfen möchten.
Mit einer maximalen Länge von 240 mm machen die spezifischen Abmessungen der Karte sie für die Mehrheit der Anwendungsfälle geeignet und kombinieren Leistung mit Flexibilität.
DESIGNED FOR EXTREMELY FAST GAMING, POWERED BY AMD RDNA™ 4
Experience the next level of 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by the groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology, and AMD HYPR-RX for ultra-smooth, ultra-fast gameplay that makes every game count.
FidelityFX
Στη διάθεση των παικτών βρίσκεται και η τεχνολογία FidelityFX™ Super Resolution 4 (FSR 4) που υπόσχεται εκπληκτική απόδοση και απαράμιλλης ποιότητας γραφικά μέσω ενός νέου μηχανισμού upscaling (AI Upscaling) που βασίζεται στην Μηχανική Εκμάθηση (ML) για τη διαχείριση του Super Resolution και συνδυάζεται με βελτιωμένες τεχνικές frame generation (AMD Fluid Motion Frames 2) και anti-lag (Radeon™ Anti-Lag 2). Χάρη στα παραπάνω χαρακτηριστικά, οι νέες κάρτες γραφικών Radeon™ RX 9000 Series υπόσχονται ομαλό παιχνίδι χωρίς συμβιβασμούς και πρωτόγνωρα επίπεδα ρεαλισμού στα πλέον σύγχρονα, φωτορεαλιστικά παιχνίδια σε αναλύσεις έως και 4K ενώ προσφέρουν υψηλότερο «performance per watt» σε σύγκριση με την προηγούμενη γενιά.
GPU AMD Radeon™ RX 9060 XT
Based on AMD's new "RDNA™ 4" architecture, the Radeon™ RX 9060 XT GPU features 32x Compute Units, 32x Ray Accelerators, 64x AI Accelerators, and 2,048x Stream Processors, while offering 32 MB Infinity Cache™.
Powerful AI Enhanced Visuals
Enjoy gaming like never before with immersive, realistic graphics powered by next-generation ray tracing, enhanced with AMD FidelityFX™ Super Resolution 4 ML-powered upscaling and increased streaming clarity through the Enhanced Media Engine.
3rd generation hardware-accelerated Ray Tracing
The new AMD Radeon™ RX 9000 series graphics cards feature specialized hardware for accelerating ray tracing technology, called the Ray Accelerator. More specifically, each compute unit (CU) includes a 3rd generation ray tracing acceleration unit, which achieves significantly higher performance per compute unit (CU) compared to the previous generation of the company's graphics cards.
3ης γενιάς AMD Infinity Cache™
Η 4ης γενιάς αρχιτεκτονική AMD RDNA™ είναι αποτελεσματικότερη και αποδοτικότερη χάρη στην πρωτοποριακή 3ης γενιάς αρχιτεκτονική μνήμης AMD Infinity Cache™. Πρόκειται για ένα νέο επίπεδο προσωρινής μνήμης, που είναι προσβάσιμο από όλα τα στοιχεία του πυρήνα γραφικών για αυξημένο εύρος ζώνης και μειωμένη υστέρηση. Η Infinity Cache™ 3ης γενιάς στις Radeon™ RX 9000 Series GPUs έχει μέγεθος 64MB και φτάνει έως και τα 96 MB (ανάλογα το μοντέλο). Λειτουργεί ουσιαστικά ως «ενισχυτής του εύρους ζώνης» για ταχύτερη πρόσβαση στα δεδομένα της μνήμης και αυξημένη συνολικά απόδοση στα παιχνίδια.
2nd Generation AMD Radiance Display™ Engine
The 2nd generation AMD Radiance Display™ engine combined with DisplayPort™ 2.1a technology offers 12-bit HDR and full coverage of the REC2020 color space (68 billion colors) for incredible color accuracy at resolutions up to 8K with a refresh rate up to 165Hz. Of course, HDMI™ 2.1 connections are also supported.
HYPR-RX
Μεγιστοποίησε την απόδοση αξιοποιώντας το σύνολο χαρακτηριστικών HYPR-RX (π.χ. AMD Radeon™ Anti-Lag 2, AMD Fluid Motion Frames 2, AMD Radeon™ Super Resolution, AMD Radeon™ Boost, AMD FidelityFX™ Super Resolution 4) με ένα κλικ από το λογισμικό AMD Software: Adrenalin Edition™. Το HYPR-RX ενεργοποιεί και ρυθμίζει αυτόματα τα παραπάνω χαρακτηριστικά για να απολαμβάνεις σημαντικά ενισχυμένη απόδοση. Επίλεξε το HYPR-RX Eco για μία ομαλή εμπειρία παιχνιδιού με μειωμένη κατανάλωση ενέργειας.
AMD Adrenalin AI
The new graphics cards come with AMD Adrenalin AI. This is a locally accelerated creative (or generative AI) application that can generate images, summarize documents, and perform various language/grammar tasks (such as translating, writing, summarizing, etc.). Additionally, it can function as a chatbot to answer various questions related to AMD and its products.
The Reaper Series
Honeywell PTM7950 TIM
The Honeywell PTM7950 thermal interface material (TIM) offers a top-tier solution for high-performance electronic systems, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 provides superior thermal conductivity, enhancing the reliability and longevity of graphics cards with its exceptional material properties.
Free Flow
The Free Flow cooling design is tailored for axial fan systems, with an advanced cooling fin module that optimizes airflow paths. By reducing turbulence and efficiently channeling air, it maximizes heat dissipation, ensuring stable performance even under heavy thermal loads.
AeroCurve Fan Blade
The latest fan blade design builds on its predecessor with improvements that reduce air friction, increasing the range of the fan's useful RPMs while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling performance for demanding applications.

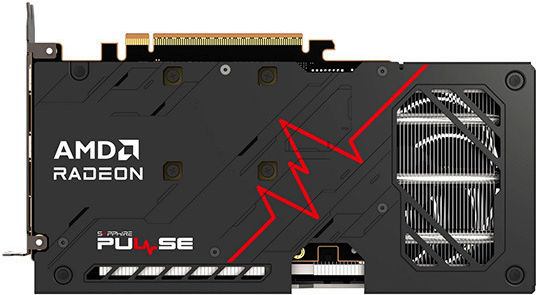

Hard Metal Backplate
The aluminum backplate provides additional rigidity, ensuring that nothing bends and that dust stays out. It also helps cool your card by increasing heat dissipation.
Integrated cooling unit
Integrated cooling is an advanced thermal management solution designed to provide efficient heat dissipation to all critical components of a graphics card. This innovative design ensures direct contact with the GPU, memory modules, and VRM units, providing uniform thermal regulation. By addressing all major heat sources, the Integrated Cooling Unit helps maintain stable operating temperatures, enhancing the overall performance and reliability of the system. Ideal for demanding workloads such as gaming, content creation, and overclocking, it ensures optimal thermal performance under continuous use.
Optimized Composite Heat Pipe
The composite heat pipes are meticulously tuned for each individual cooling design with optimal heat flow, effectively and evenly distributing heat across the entire cooling unit.
