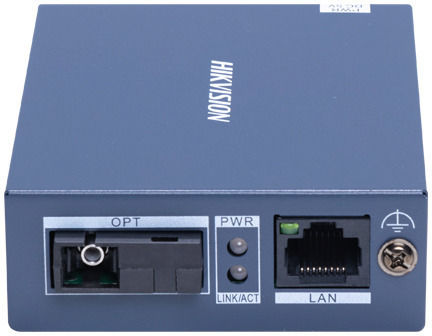

The Hikvision DS-3D501R-3 media converter converts signals between copper network and fiber optic. It supports transmission up to 3 km and WDM (Single-Fiber) technology, for bidirectional data transfer over a single optical fiber.

Technical features:

• Enclosure: metal
• Dimensions (W × H × D): 71.6 × 26.1 × 94.1 mm
• Weight: 0.13 kg
• Operating temperature: -20°C to 60°C
• Humidity: 5%–95% non-condensing
• Power supply: 5 V DC, 0.6 A
• Maximum consumption: 3 W
• Ports: 1 × RJ45 10/100/1000 Mb/s and 1 × SC optical port 1000 Mb/s
• Switching rate: 4 Gbps
• Packet forwarding: 2.98 Mpps
• Transmission distance: up to 3 km
• Wavelength: transmitter (Tx) 1550 nm / receiver (Rx) 1310 nm
• Emission power: -12 to -4 dBm
• Receiver sensitivity: ≤ -22 dB
• Overvoltage protection: 4 kV
