Category: Accessories for Electrical Panel

• Device construction: fixed installation device
• Safety switch: yes
• Main switch: yes
• Compact switch: yes
• Maintenance switch: yes
• Emergency switch: yes
• Number of poles: 3
• Auxiliary switching contacts: 0
• Auxiliary opening contacts: 0
• Auxiliary closing contacts: 0
• Maximum rated operating voltage Ue AC [V]: 690
• Suitable for installation in distribution panels: no
• Suitable for front mounting with 4 holes: yes
• Suitable for central front mounting: no
• Suitable for intermediate mounting: no
• Suitable for flat mounting: no
• Optional motorized drive mechanism: no
• Optional voltage disconnector: no

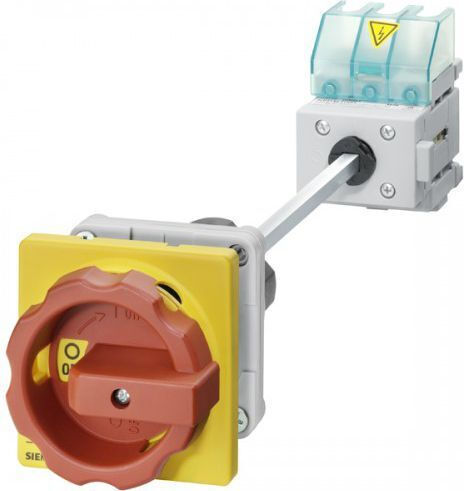

• Type of switching element: rotary switch
• Main circuit connection type: other
• Protection degree (IP): ip65
• Integrated motorized drive mechanism: no
• Locking mechanism: yes
• Nameplate operating power for AC-23, 400 V [kW]: 37
• Nameplate operating power for AC-3, 400 V [kW]: 30
• Rated continuous current Iu [A]: 100
