Panel accessories

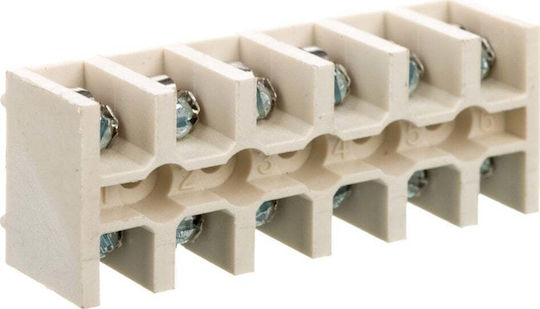

Screw Terminal Strip with six independent poles for wire connection and separation.

• Enclosure: Polyamide PA66, self-extinguishing and halogen-free.
• Manufacturer: POKÓJ
• Manufacturer code: A12-0C52
• Number of poles: 6
• Maximum conductor cross-section: 4 mm²
• Color: White (RAL 9010)
• Conductive parts material: Silver-plated copper
• Rated voltage: 500 V AC
• Rated current: 32 A
• Terminal type: Screw terminal
• Screw tightening torque: 0.8 – 1.0 Nm
• Operating temperature: -40°C to +105°C
• Protection degree: IP20 (embedded installation)
• Standards and certifications: IEC 60947-7-1, RoHS, CE
• Dimensions:
• Length: 60 mm
• Width / pitch: 22.5 mm
• Height with minimum mounting method: 19 mm
• Number of terminals per pole: 2
• Distance between hole axes: 10 mm
• Single-conductor cross-section: 0.75 to 4 mm²
• Multi-conductor cross-section without terminal cover: 0.75 to 4 mm²
• Multi-pole conductor cross-section: 0.75 to 4 mm²
• Ex explosion protection version “EEx e”: No
• Required end plate: No
• Transparent: No
