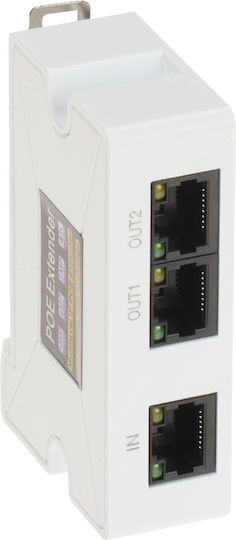

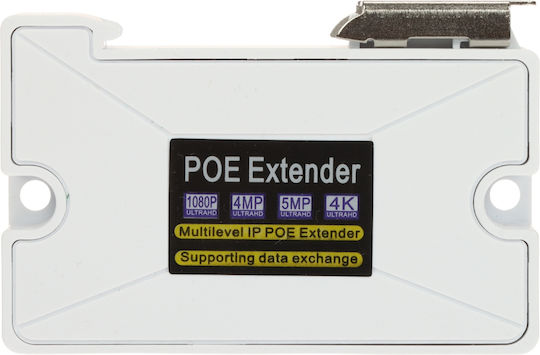

The Delta PFT1310 PoE Switch / Extender features three RJ45 ports and allows the connection of two cameras with PoE power supply via a single Ethernet line. Two extenders can be connected in cascade, enabling the connection of up to three cameras. It is powered by a PoE switch or other compatible device and includes overvoltage protection.

• Manufacturer: Delta
• Number of ports: 3
• LAN port standards: 10/100 Mbps
• Power supply: PoE (802.3af/at)
• Maximum output power: 15.4 W @ port PoE - First device
• Maximum output power: 3 W @ port PoE - Second device in cascade
• Consumption: 0.3 W
• Input range: 100 m
• Output range: 100 m
• Enclosure: plastic, DIN rail mount, TS-35
• Operating temperature: -30 ... 65 °C
• Relative humidity: 10 ... 90 %
• Dimensions: 79 x 52 x 23 mm
