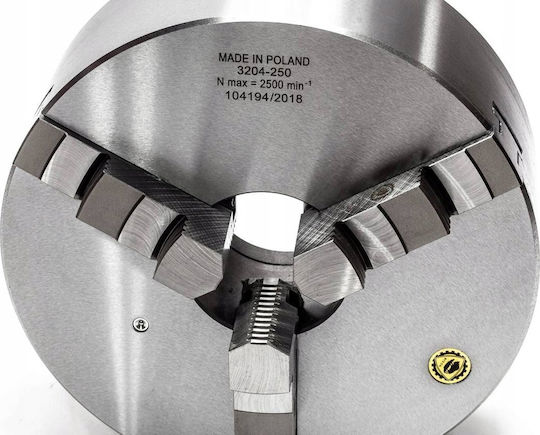

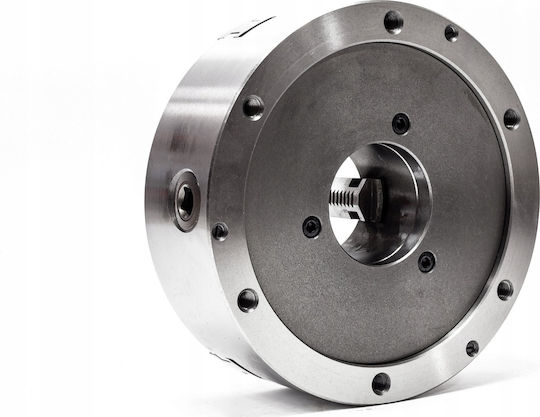

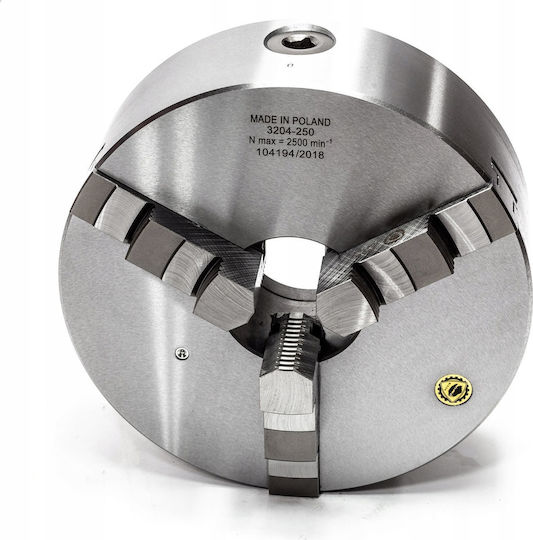

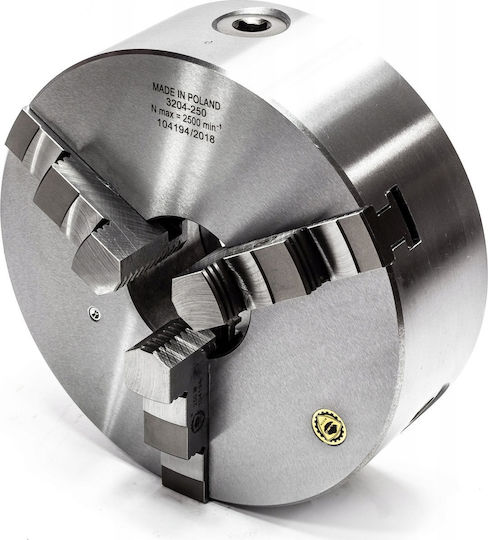

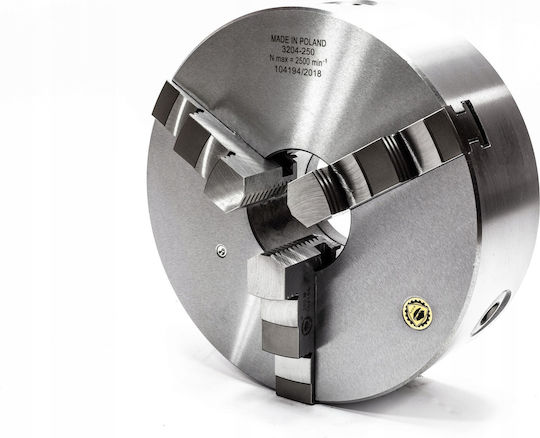

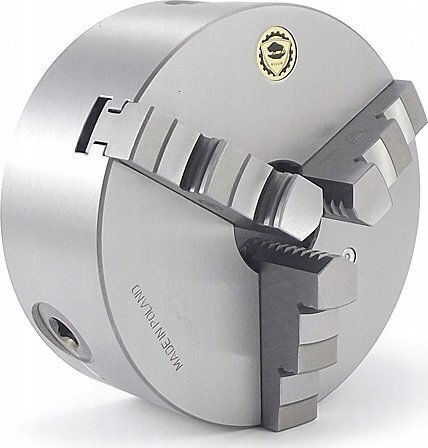

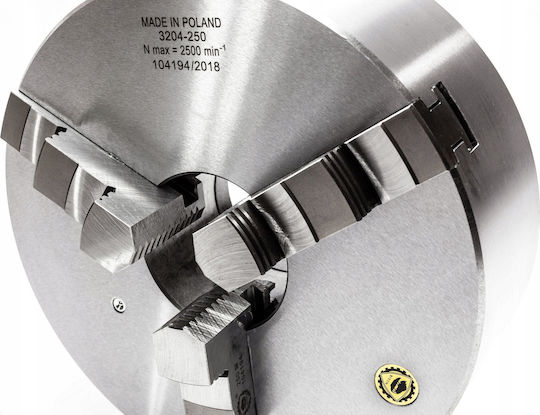

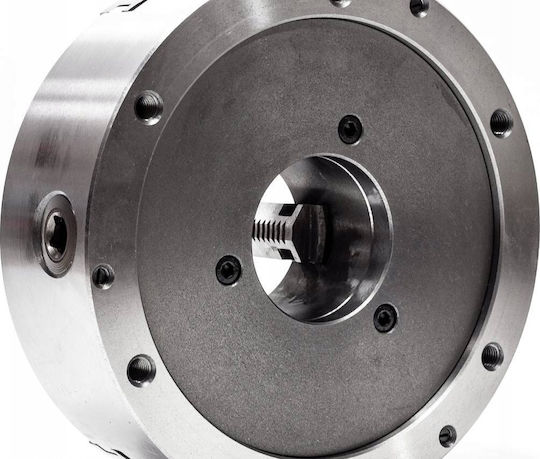

Chuck for Lathe Bison-Bial TOK.3204 FI 160 with three self-centering jaws, suitable for lathes, rotary tables, and dividers. The body is made of cast iron and features machined work surfaces and lubricators.

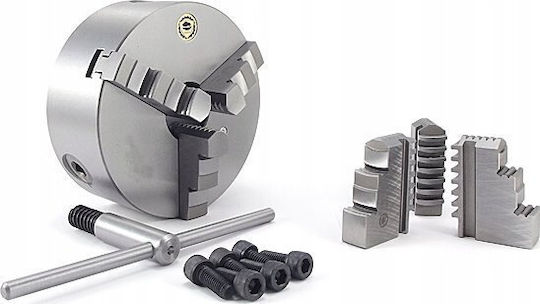

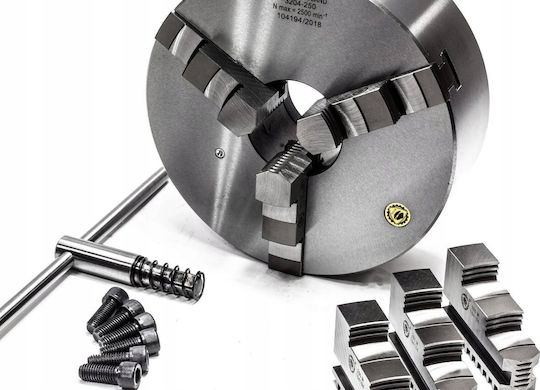

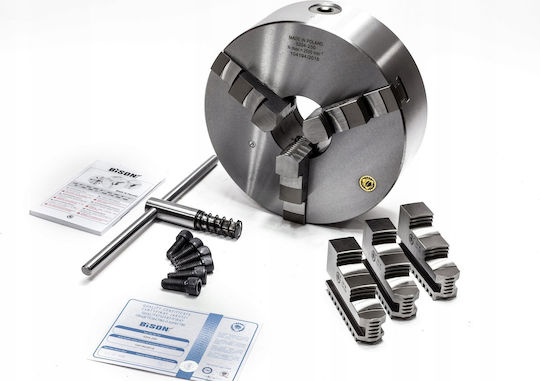

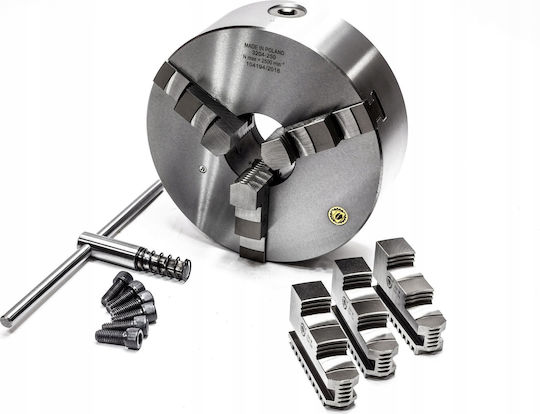

The package includes:

• Unified external and internal jaws
• Wrench
• Mounting screws

Technical specifications:

• Type: three-jaw chuck
• Operation mode: self-centering
• Body material: cast iron
• Diameter: 160 mm
• Height: 64.5 mm
• Maximum revolutions: 3000 rpm
• Clamping force: 3100 daN
• Weight: 10 kg

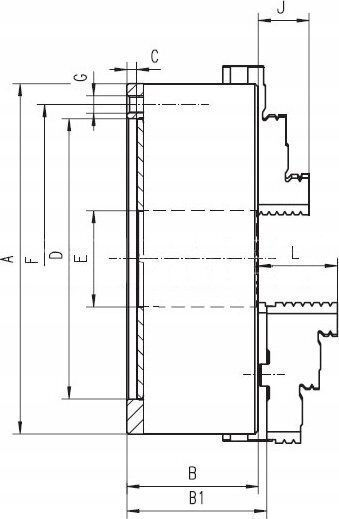

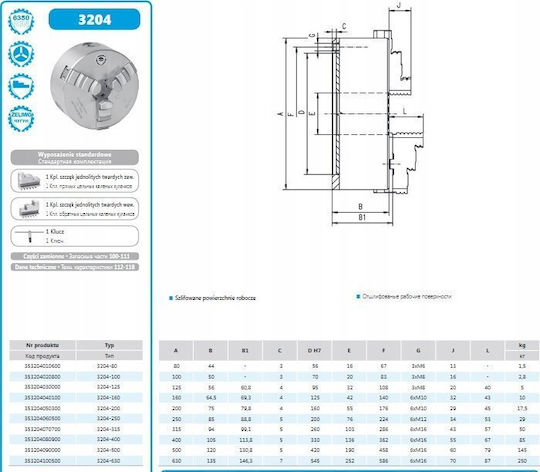

• Dimensions: A: 160 mm, B: 64.5 mm, C: 4 mm, D: 125 mm, E: 42 mm, F: 140 mm, G: 6 x M10, J: 32 mm
• Clamping range: d1: 3-64 mm, d2: 50-107 mm, d3: 98-160 mm, d4: 42-100 mm, d5: 94-154 mm
