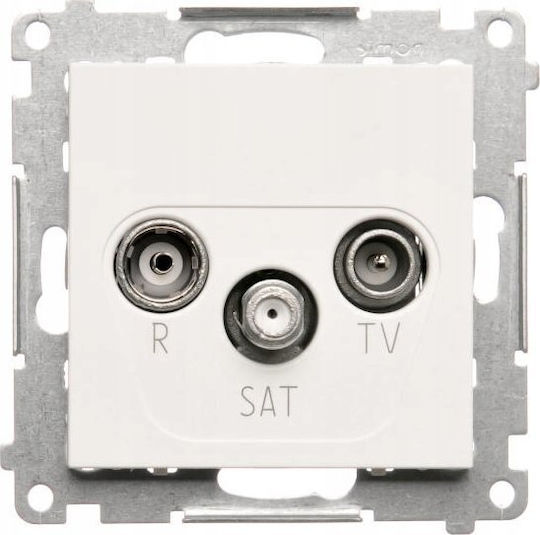

The R-TV-SAT Kontakt-Simon 55 TASK.01/111 antenna terminal socket is designed for terminating the signal line. It features a modular construction compatible with Simon 55 series frames and a matte white front made of thermoplastic material.

• Frequency range: 5 MHz – 2400 MHz
• Impedance: 75 Ω
• TV/R insertion loss: approximately 1.5 – 2 dB
• SAT insertion loss: approximately 1.5 – 2.5 dB
• Connection: IEC (male for TV and female for R) + F connector (SAT)
• Standards: EN 50083, CE
• Dimensions: height 75 mm, width 75 mm, depth 40 mm
• Installation depth: 29 mm
• Protection: IP20
• Package weight: 0.111 kg
• EAN: 5902787879624
