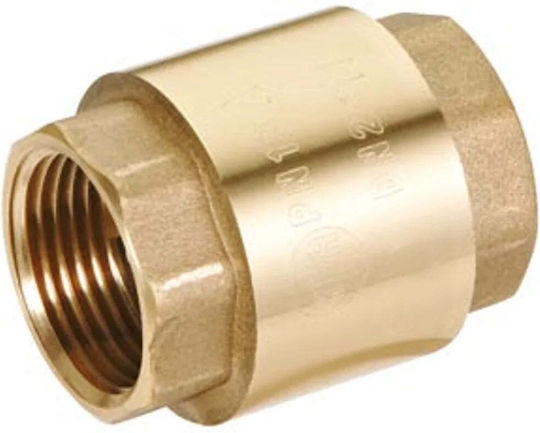

Check valve for hydraulic installations, with a brass closing cone. It maintains one-directional flow in cold and hot water systems up to +95°C. The flow in the direction of the arrow passes through a membrane, allowing the liquid to flow only in one direction. It is an automatic valve.

• Type: check valves
• Material: brass
• Operating element: brass closing cone
• Pressure PN [bar]: 16
• Surface: polished
• Connection: fitting-to-fitting
• Flow: full flow
• Size: 3/4'
• Installation: vertical or horizontal, respecting the flow direction according to the valve arrow
• Suitable for: water up to 1.0 MPa and 90°C
• Tested for: tightness at 1.6 MPa pressure

The package includes a complete check valve. Manufactured according to standards PN-EN 1074-3 / PN-EN 12164.
