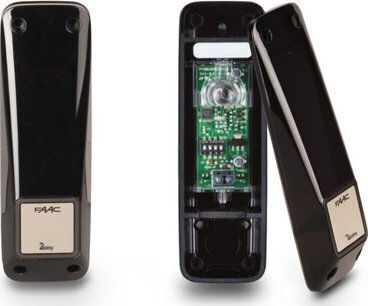

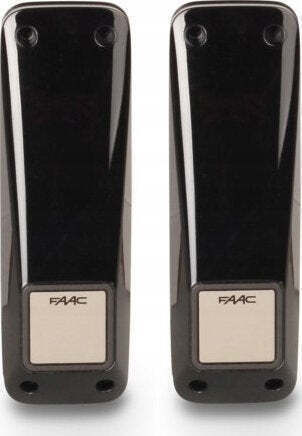

FAAC XP20BD Photocells with adjustable horizontal field of view and a nominal range of 20 m. They can be mounted on a wall or on a support base.

• Manufacturer: FAAC
• Manufacturer code: 785103
• Set quantity: 2 pcs.
• EAN (GTIN): 8055195012385
• Power supply: Via BUS 2easy line, two wires 24V without polarity
• Dimensions: 41 x 130 x 42 mm
• Horizontal angle adjustment: -90° to +90°
• Automatic angle adjustment: ±7° (20m), ±13.5° (5m)
• Obstacle detection time: 20ms
• Consumption: Rx (10mA) + Tx (10mA)
• Protection rating: IP54
• Maximum contact performance: 60VA/24W
• Operating temperature: -20°C to +55°C
• Installation capability: up to 16 pairs of photocells in one system
